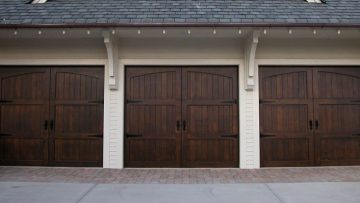

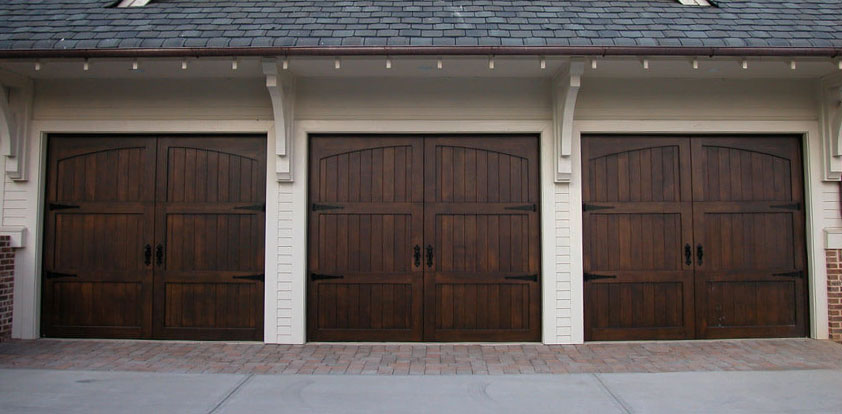

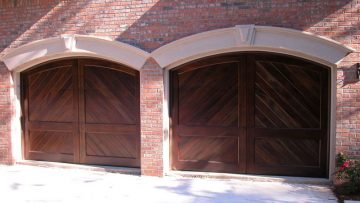

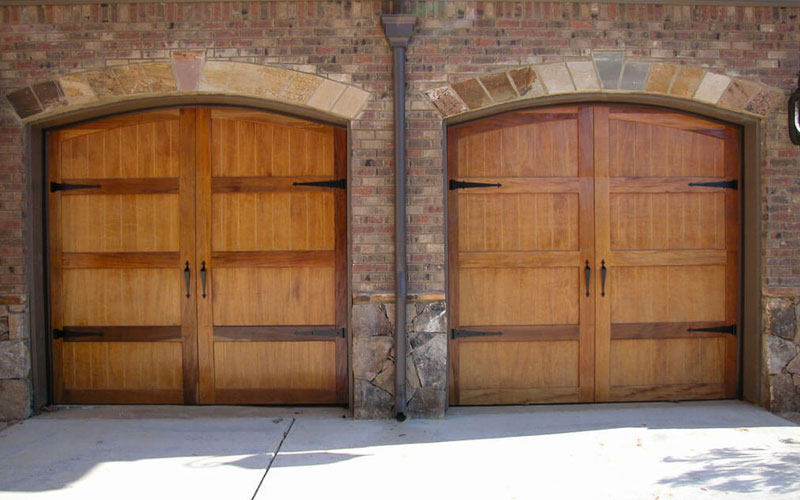

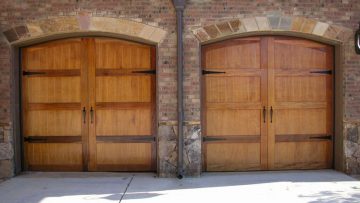

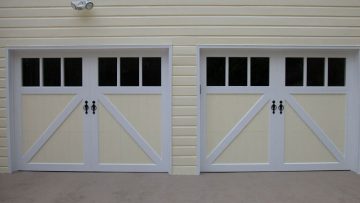

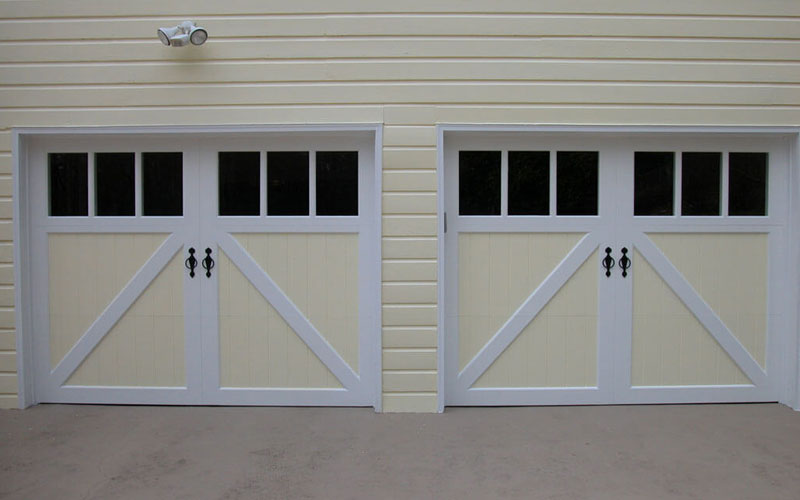

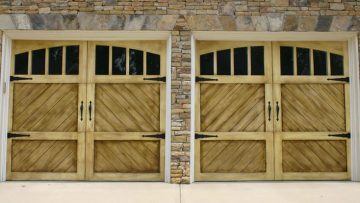

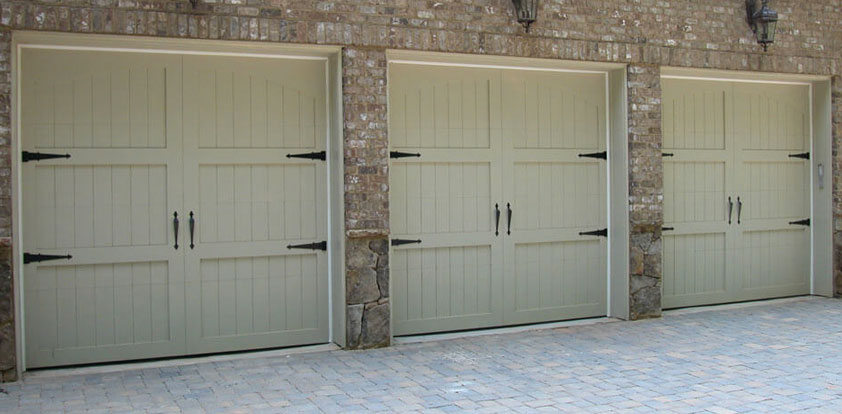

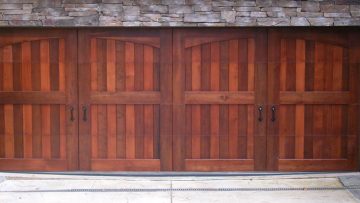

The Carriage House® Wood Collection

• Option to add reclaimed boards to your garage door in a variety of colors including sienna, umber, and cordovan.
• Your choice of trim or overlay.
• 1-3/8 inch EPS, Polystyrene insulation.
• 1/8 inch DBS stopped and sealed windows. Many glass options available including Seedy, Graylight2, and Obscure.
• Wire-brush option available on all select doors for a weathered effect.
• Fire-rated custom wood doors.

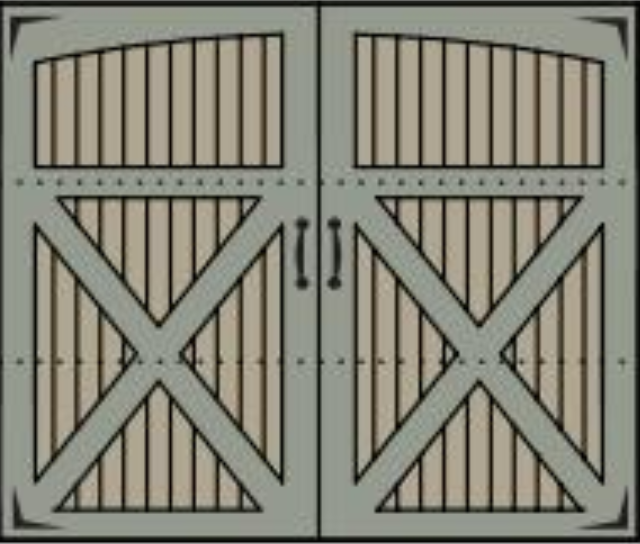

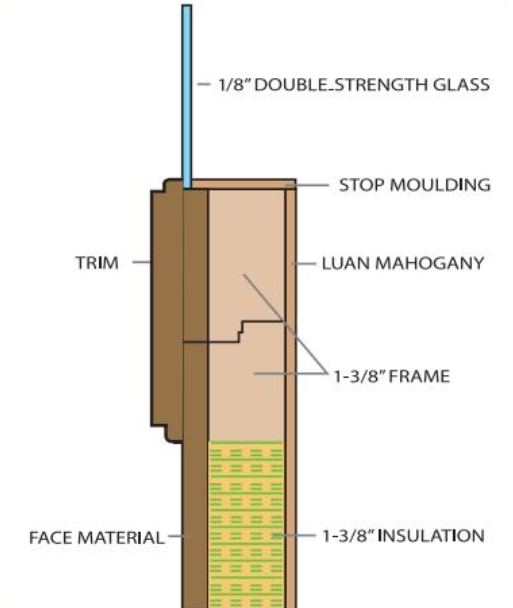

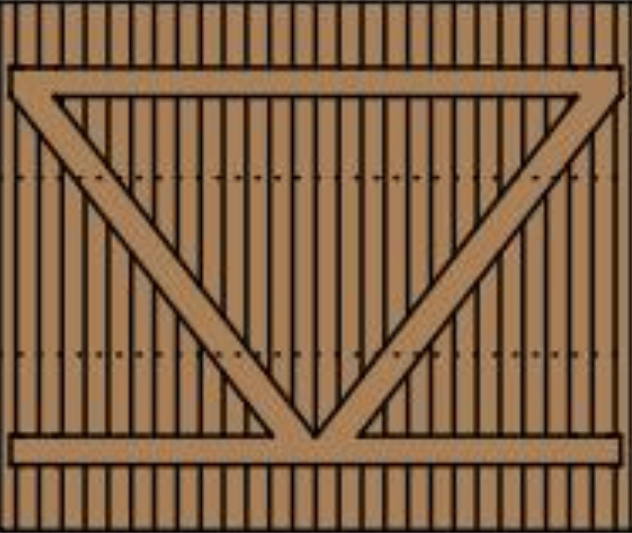

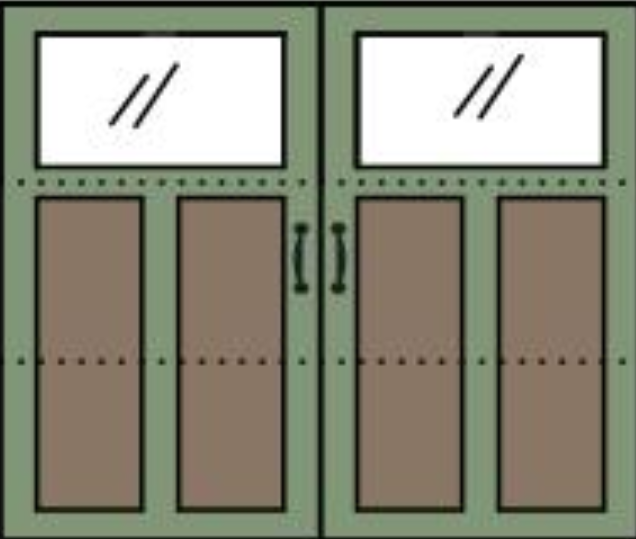

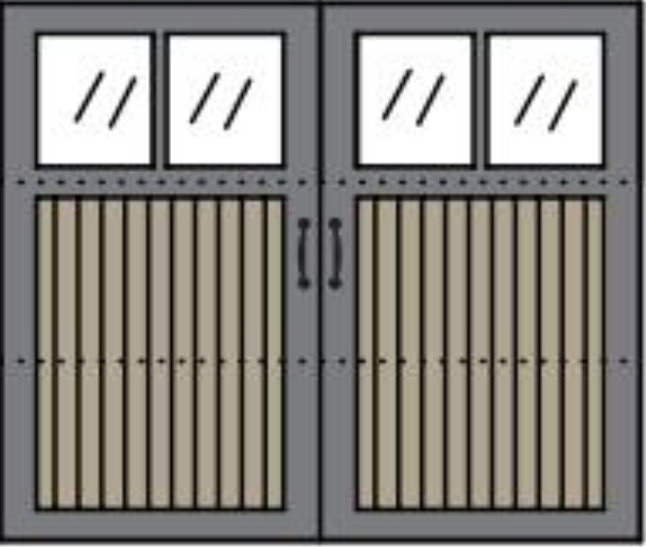

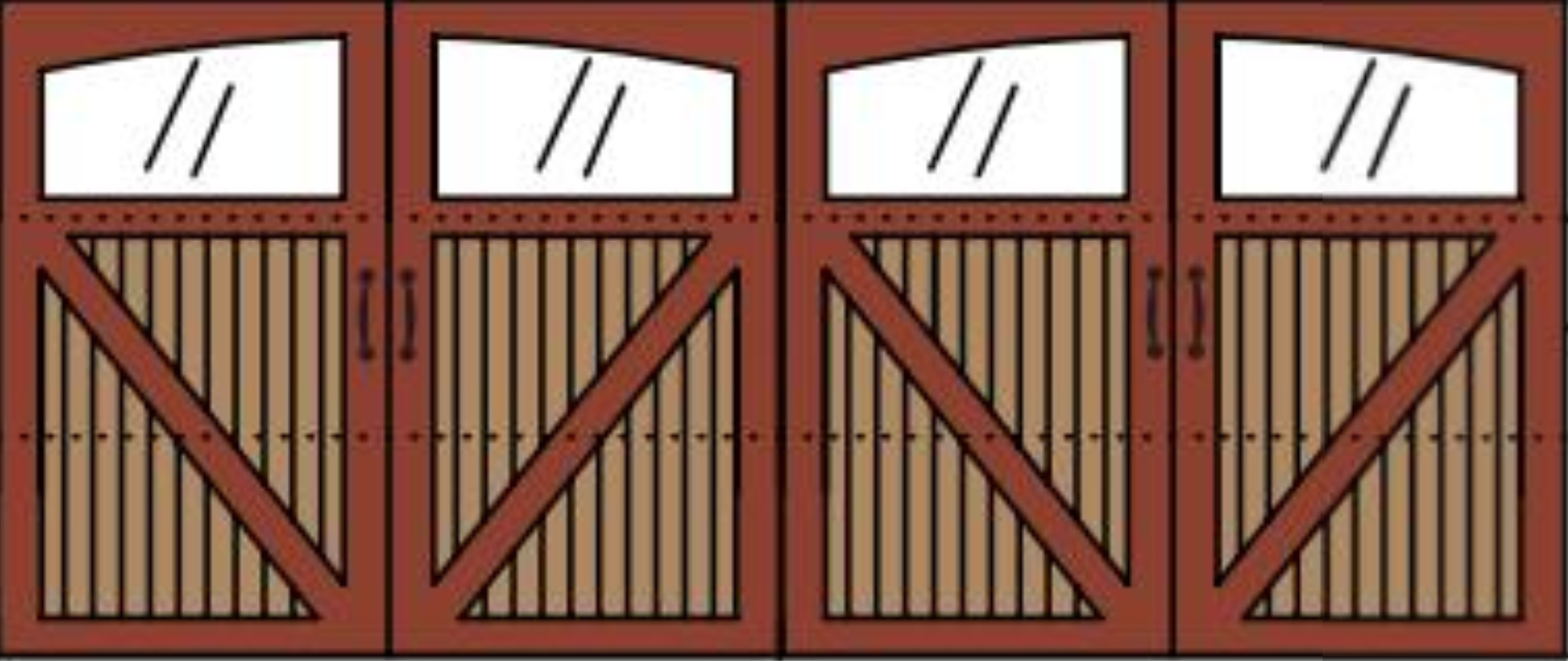

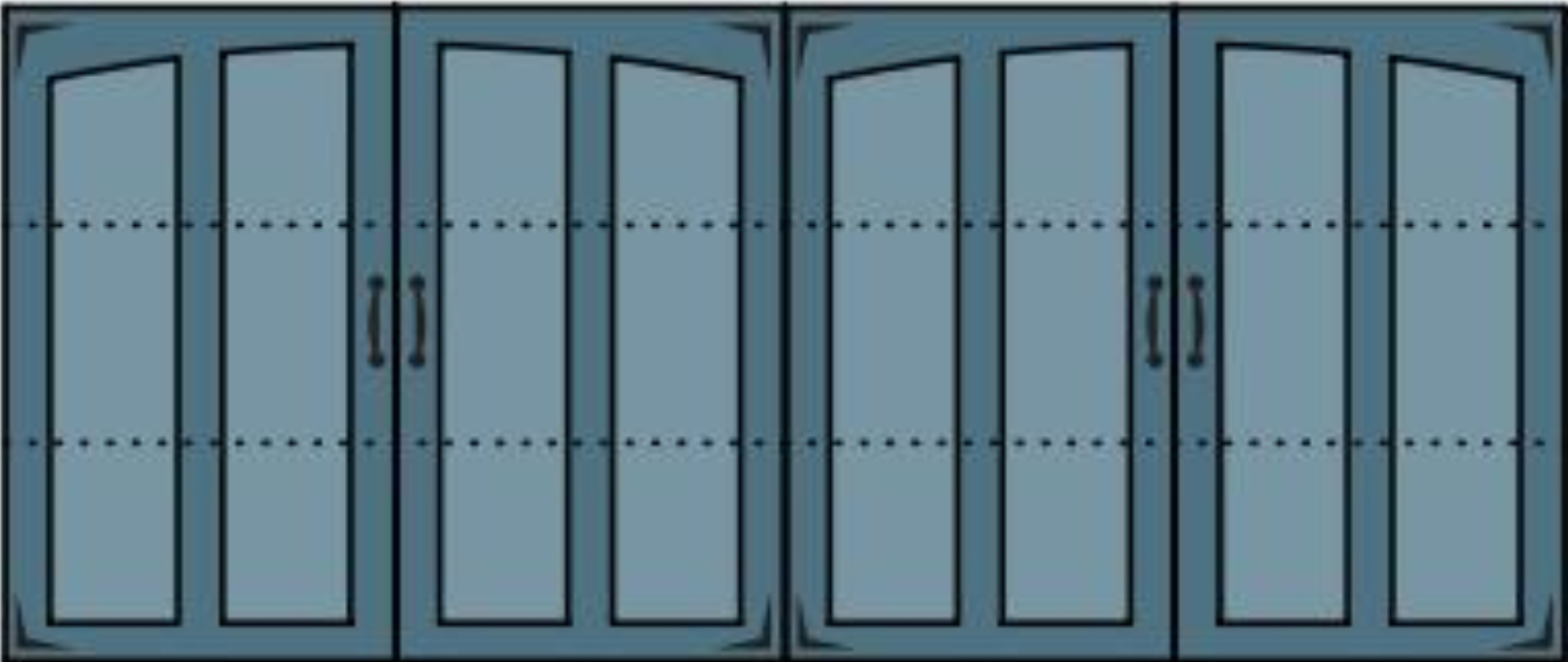

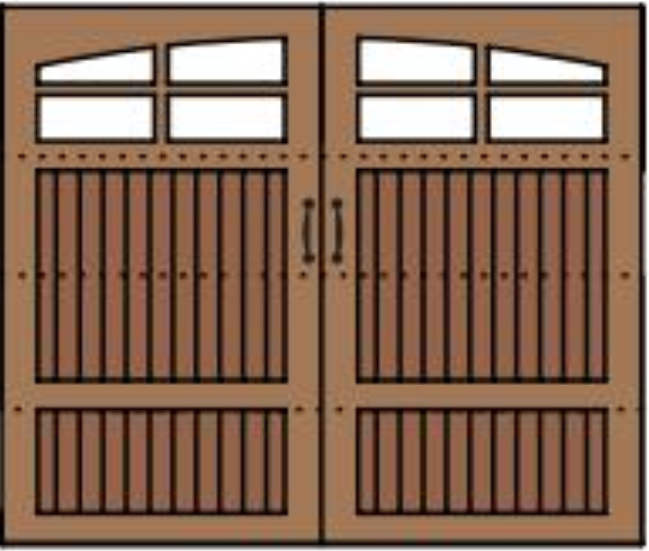

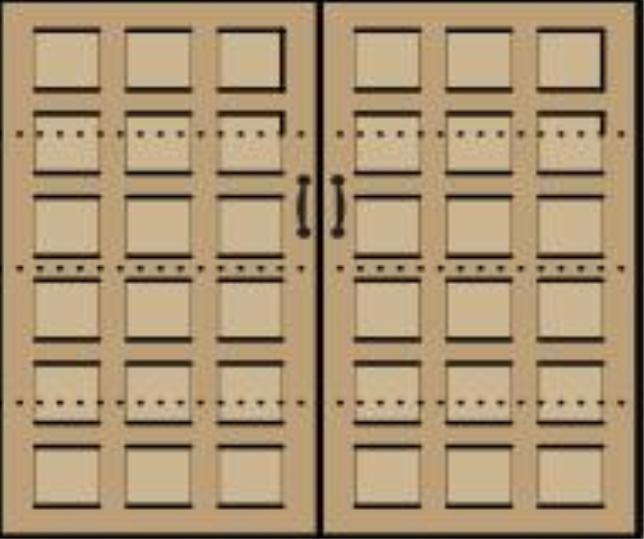

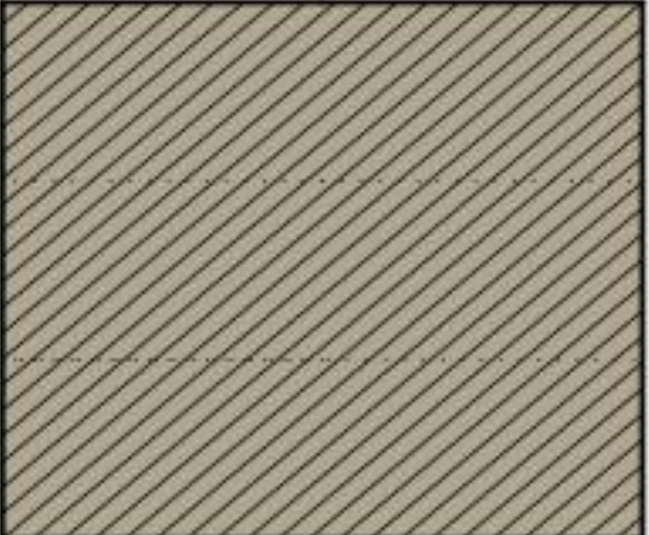

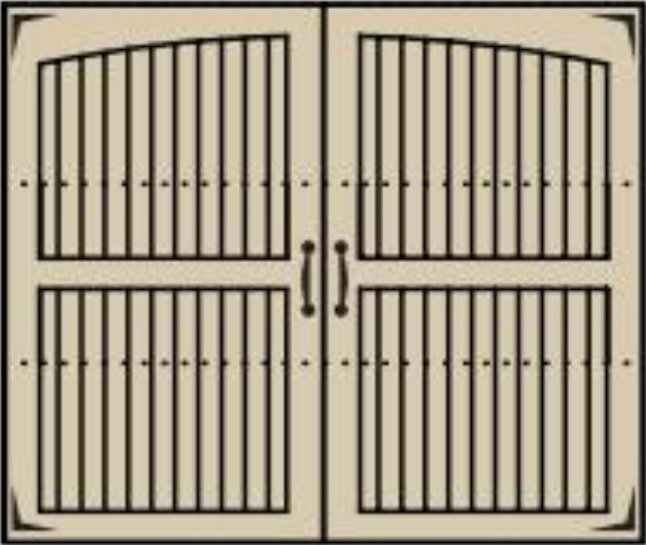

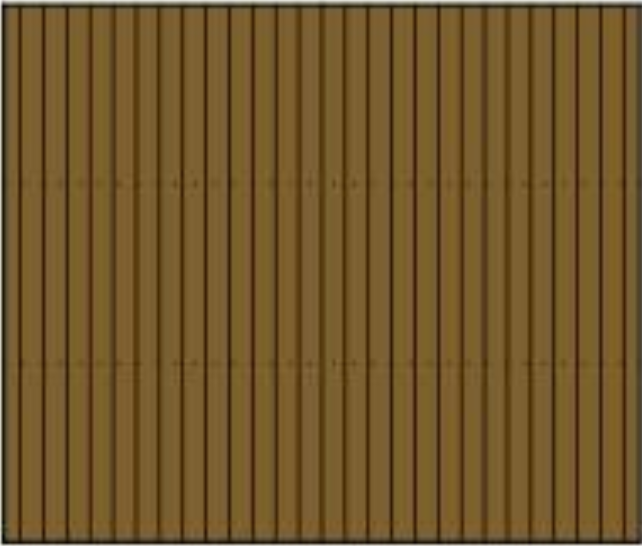

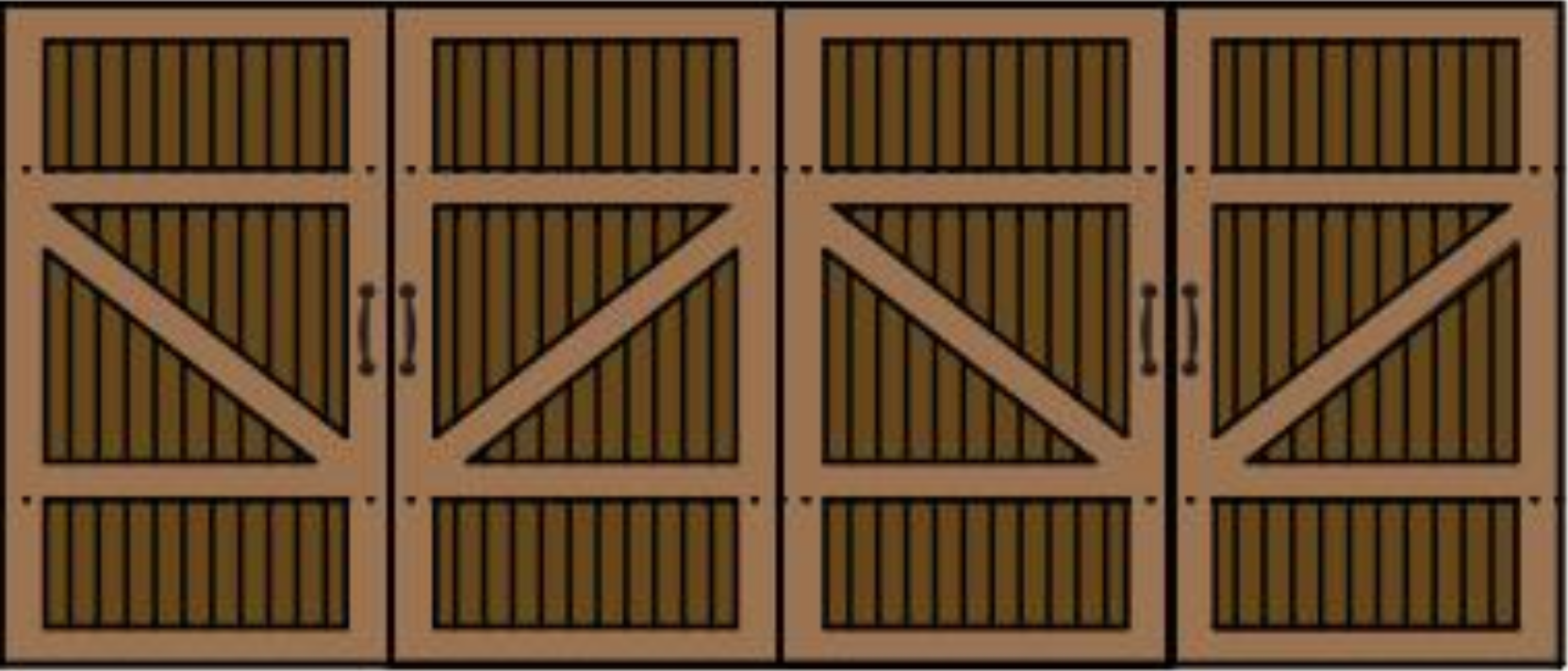

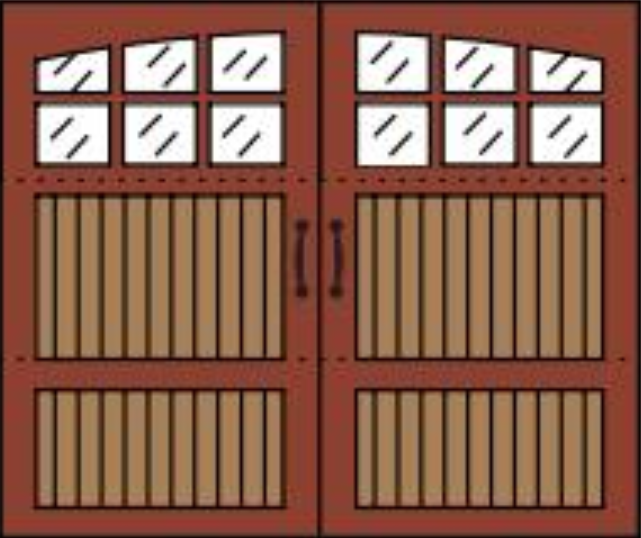

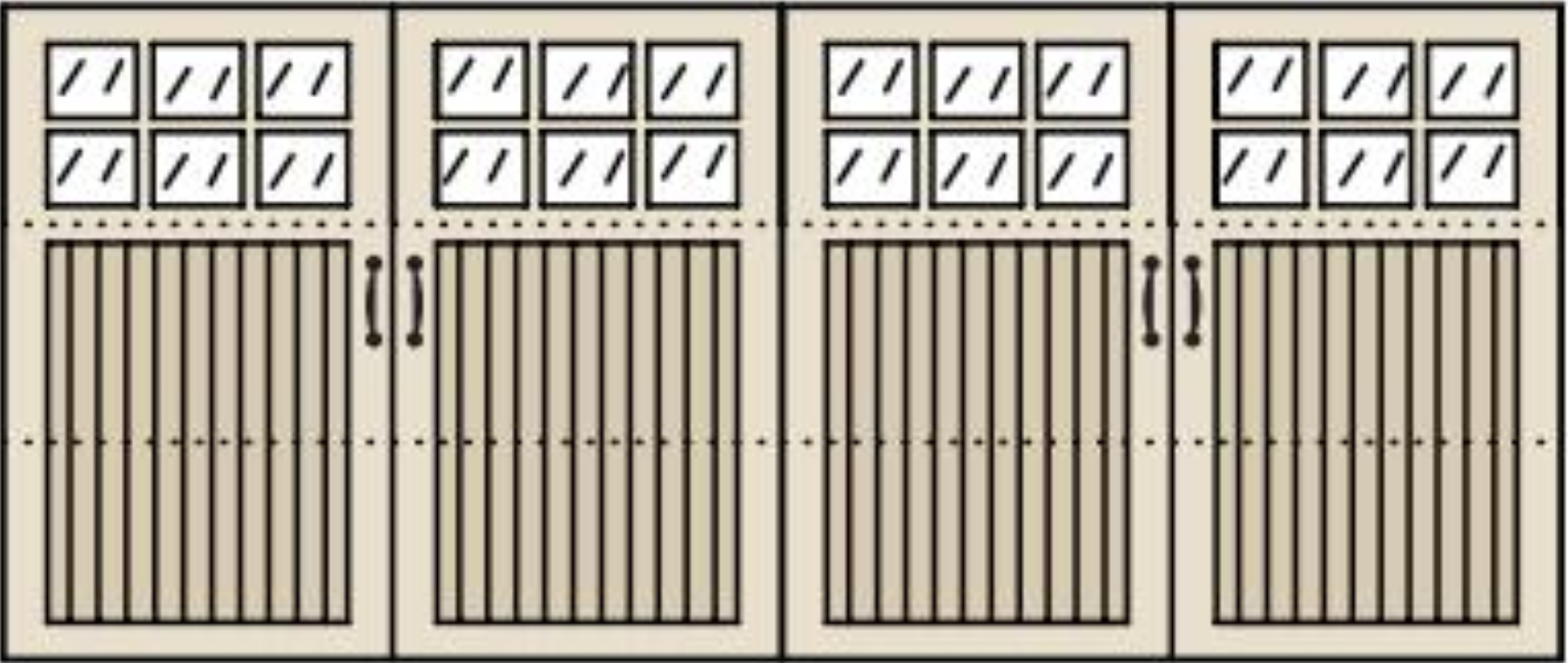

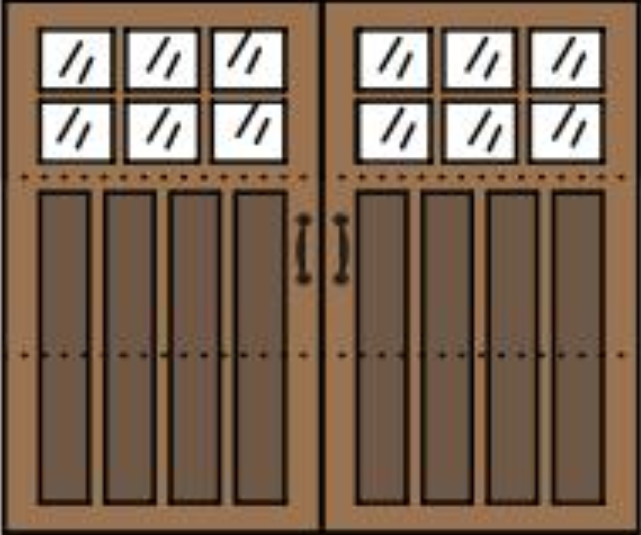

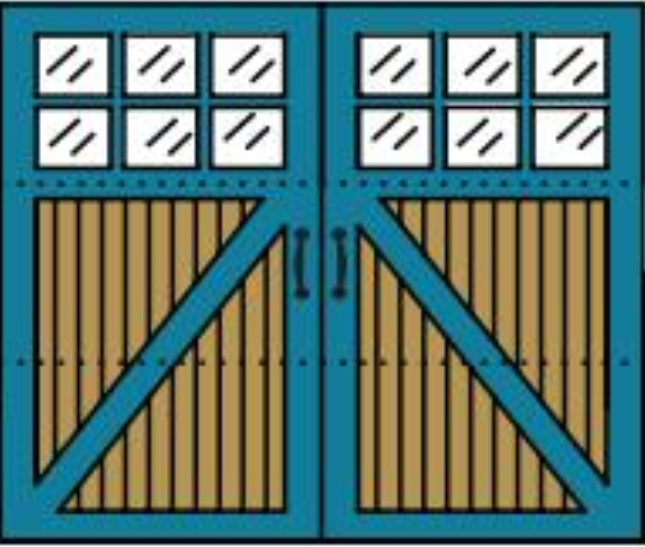

Door Designs

1. Trim
2. 1/8 inch double-strength glass
3. Face material
4. 1-3/8 inch frame and 1-3/8 inch insulation
5. Luan mahogany and stop moulding

• The frame is made of 1-3/8 inch kiln-dried fir.
• The facing is your choice of :
  • Medium density overlay plywood
  • Breckenridge plywood siding

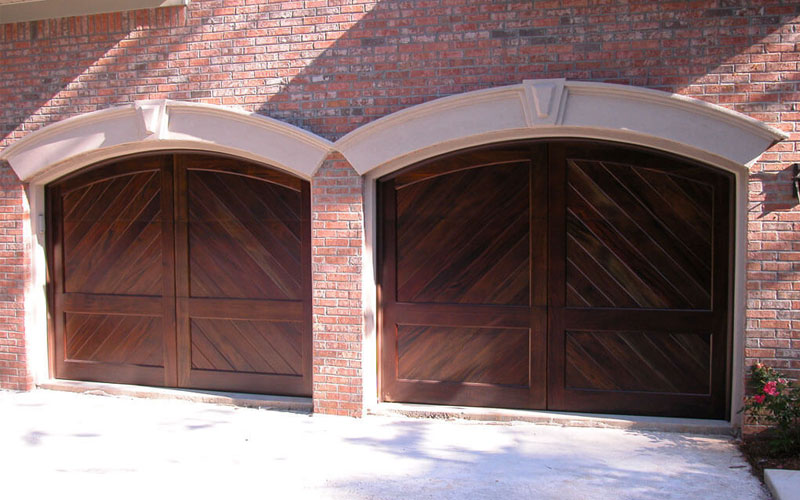

  • Marine mahogany plywood
  • Other available materials

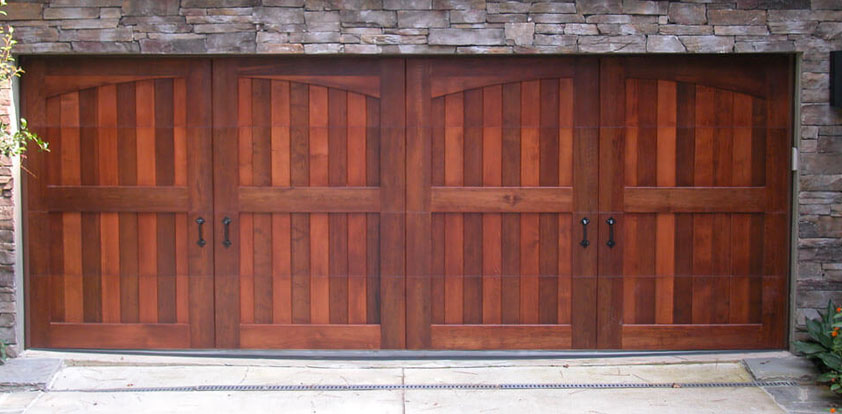

• Trim and overlay is your choice of vertical grain clear western red cedar, STK incense cedar, vertical grain douglas fir, clear heart redwood, or mahogany bonded to facing with exterior adhesive and galvanized finish nails.
• Core made of 1-3/8 inch EPS, Polystyrene insulation.
• Arched top available in a standard or custom radius.
• The maximum section height is 32 inches.
