Canyon Ridge® Chevron

The iconic chevron pattern moves from floors and fabrics to the garage with Canyon Ridge® Chevron. Crafted from low-maintenance composite, it delivers the warmth of real wood without rot, warping, or cracking. Choose from four bold patterns and customizable finishes for lasting performance and standout curb appeal.

Schedule a Free Estimate

America’s Favorite Doors™

Intellicore®

Color Blast®

WindCode®

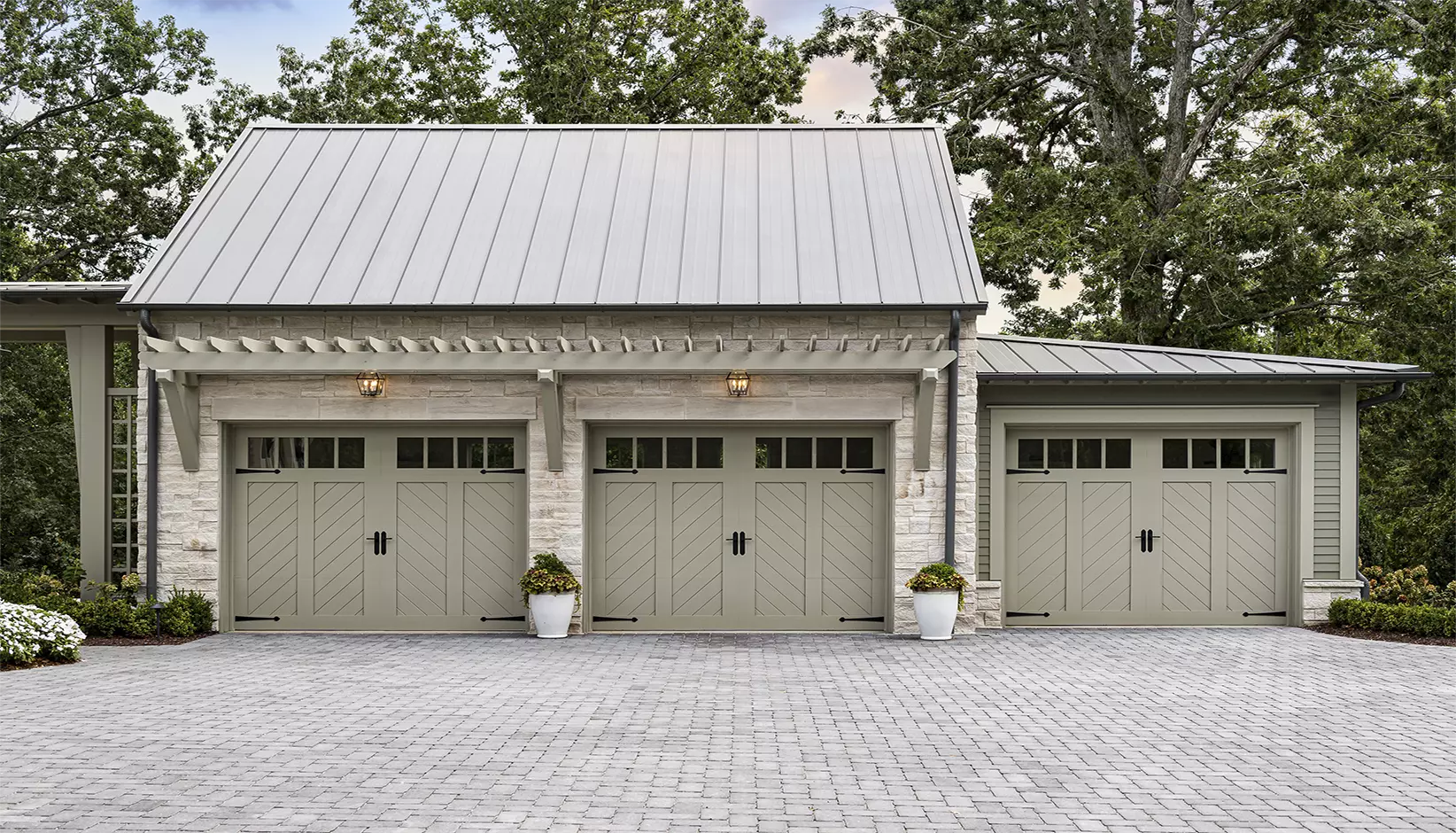

Cr Chevron D12a Slate 8241 E1678720508822

Overview Door Design Construction Brochures Installation & Care

The Pattern of Performance

Durable 5-Layer Construction

Each door features a steel–insulation–steel core, finished with composite cladding and a composite overlay. This layered design provides structural integrity, energy efficiency, and a refined look.

Authentic Wood Look

Enjoy the richness of real wood without the maintenance. Composite cladding and overlays are molded from genuine wood pieces, preserving natural grain and texture.

Bold Chevron Pattern

Precision-cut at 45-degree angles, the cladding forms a striking chevron “V” design. Make a statement with multiple layout variations and four pattern options.

Customization Options

Select Clear Cypress or Mahogany tones, choose from standard finishes or over 1,500 paint colors, and add windows or decorative hardware to complete the look.

High-Performance Insulation

A 2" polyurethane core delivers an impressive 20.4 R-value to help regulate garage temperatures year-round.

Built for Tough Conditions

Optional reinforcement provides added protection in high-wind regions.

Environmental Compliance

These doors meet all applicable environmental regulations and do not contain HFCs, supporting responsible building practices.

Calculated garage door section R-value is in accordance with DASMA TDS-163.

Designs Cladding Designs Top Sections Window Designs Specialty Glass Options Material Options Colors

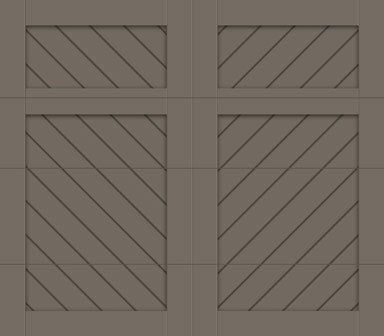

Design 11

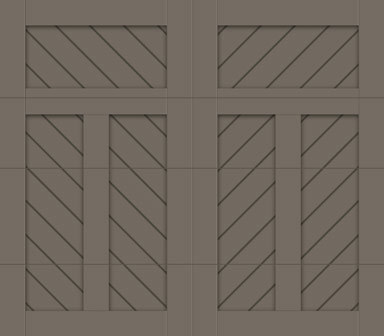

Design 12

Design 13

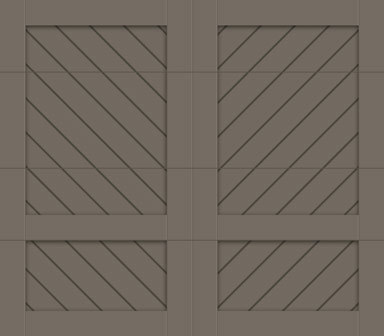

Design 31

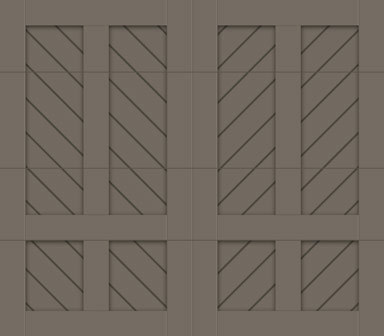

Design 32

Design 33

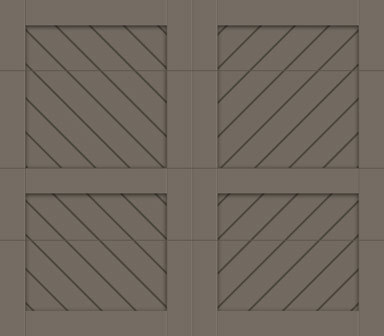

Design 36

Design 37

Option-A

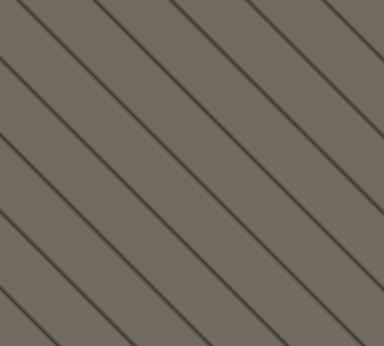

Option-D

Option-U

Option-V

ARCH1A-SQL

ARCH1-SQL

TOP 11

TOP 12

TOP 13

Rec 11

Rec 13

Rec 14

SQ 23

SQ 24

Arch 1

Arch 3

Arch 4

Arch 13

Arch 14

Seeded

Rain

Frosted

Obscure

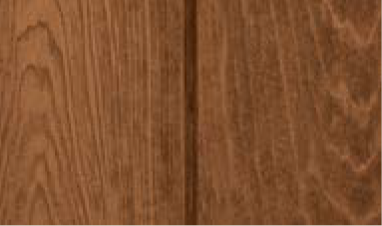

Composite Cladding - Clear Cypress

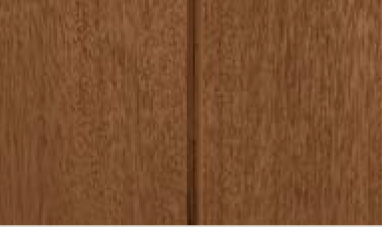

Composite Cladding - Mahogany

Composite Cladding: Pecky Cypress

Composite Overlay Material: Cypress

Composite Overlay Material: Mahogany

Composite cladding and overlay material options may be mixed and matched.

Medium Finish

Dark Finish

Walnut Finish

Slate Finish

Black Finish*

White Finish*

Primed (No Finish)

Bronze Finish

Charcoal Finish

Note: Black*, White*, Charcoal* and Bronze* colors are only available on mahogany materials.

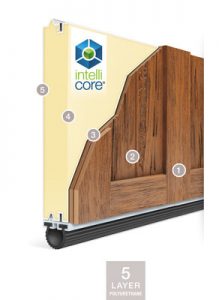

Canyon Ridge Construction

Canyon Ridge® Chevron doors offer the beauty and realism of real wood with far less upkeep. The faux wood composite cladding and overlays are UV- and moisture-resistant, so they won’t rot, warp or crack, making this an ideal door for coastal climates.

The five-layer door features Clopay Intellicore® insulation, a proprietary polyurethane foam that is injected between the steel skins and expands to fill the entire structure. The result is a door with incredible strength, durability and energy efficiency.

Removable window grilles for easy cleaning.
Replaceable vinyl bottom weather seal in a rust-proof aluminum retainer helps keep out air and water.
High-performance nylon ball-bearing rollers help ensure smooth, quiet, long-lasting operation
Heavy-duty 14-gauge steel hinges and brackets for secure, worry-free operation.
Bottom Safe-T-Bracket prevents serious injury that could occur if it is removed when the garage door is closed and under tension.
